product description:
The knife grinder JXDS-800 is an instrument that specializes in crushing and homogenization. It can crush samples to the fineness of analysis within tens of seconds by relying on high rotation speed and diversified accessories. The crushing result has a high degree of homogenization, which can meet various professional requirements put forward by the laboratory operation and analysis process. It has many applications in the food industry, not only for effective grinding of dry, soft, elastic, fibrous, and medium-hard samples, but also for effective homogenization of high-moisture, high-oil and high-fat samples treatment.
working principle:
The cutter head is placed at the center of the bottom of the grinding cup, and the cutter heads are kept at a certain height between them, and they start to rotate under the drive of a motor with a power of 1100 watts. The cutting action of the sharp steel blade produces reliable crushing and homogenization effects, which can be used for coarse crushing or fine crushing of samples. It only takes tens of seconds to pulverize the more difficult samples to obtain a homogenized sample of analysis level.
Applications:
Typical sample application:
Agriculture: plant seeds, grains, feeds, etc.
Medicines: Chinese herbal medicines, tablets, etc.
Biology: animal tissues, plant leaves, seedlings and germs, etc.
Food: fruits, vegetables, quick-frozen food, candies, candied dried fruits, meat, fish, etc.

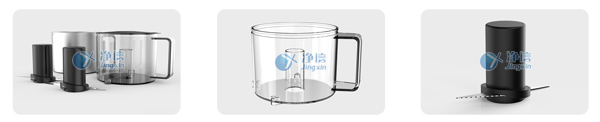

Product acessories:
Grinding effect:
Instrument advantages:
1. The electronic control system has click function and program setting, method memory and storage function, which effectively ensures the repeatability of samples and homogenized sample preparation results;
2. Simple operation and quick start;
3. Adopt industrial motor, strong power, 1100 watts, controllable speed;
4. Parameter setting digital display, 10 groups of commonly used programs can be stored;
5. Grinding cups of a variety of materials are available, and the accessories can be sterilized by high temperature and high pressure;
6. The instrument is equipped with a safety protection lock to ensure the safety of the operator, safe and reliable;
7. The serrated blade makes hard samples and samples with high fat content better homogenize, and the grinding efficiency is higher;
8. High speed, fast grinding speed, with forward and reverse mode, intermittent mode (interruptible).
technical parameter:
Main parameters | Parameter range |
Grinding time setting: | 0-9999s adjustable |
Sample type: | dry, soft, elastic, fibrous, medium hard, fat, water, oil Injection size: about 10-40mm |
Sample volume: | 10-40mm |
Sample volume: | ≤700ml |
Speed: | 1000-16000rpm |
Accessories: | stainless steel, PP, PC, can be sterilized by high temperature and high pressure |
Operation mode: | Intermittent mode, forward and reverse mode |
Blade: | stainless steel blade, stainless steel serrated blade, titanium blade |
Rotary blade material: | stainless steel, titanium |
Storage parameters: | 10 |
Power: | 1100W |
Dimensions (length, width and height): | 310mm*300mm*370mm |
